2022 OrangeLine TH70 CAR/EQUIP 20′
$4,774.46
ANG/W RAMPS – 2150211, 2150221, 2150224, 2150227, 2150233, 2150235, 2154828
$5,085.49
SLIDE RAMPS – 2181585, 2183341
2022 TH70 CAR/EUIP 20' Full Specs
| Length | 20′ |
| Width | 83” |
| GVWR Rating | 7,000# |
| Empty Weight | 2,060# |
| Payload Weight | 4,940# |
| Frame | 5” x 3” x 5/16” Angle |
| Cross Members | 3” x 2” x 3/16” Angle |
| Front Stop Rail | Square Tubing Front Stop Rail |
| Coupler | Adjustable, 2” Forged Coupler |
| Jack | 2,000# Top Wind, Set-Back Jack w/ Removable Sand Foot |

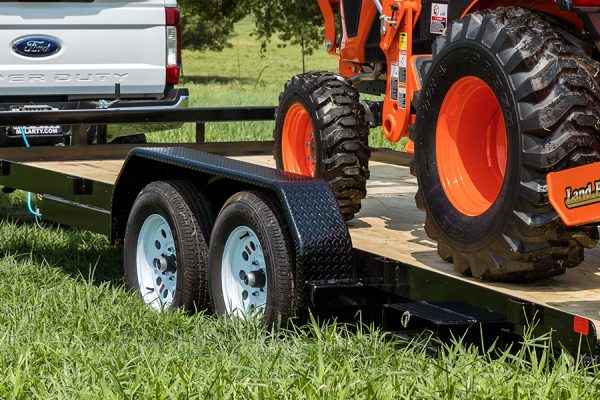

| Fenders | Removable 9” x 72” Double-Broke Diamond Plate Steel |
| Axles | Dexter Brand, 3,500# Axle w/ EZ Lube Hubs |
| Brakes | Nev-R-Adjust Electric Brakes on All Hubs |
| Suspension | Multi-Leaf Spring w/ Equalizer |
| Tires | ST205/75R-15 Load Range C |
| Wheels | 15” x 5”; White Mod, 5 on 5 Bolt Pattern |
| Decking | 2” Treated Pine |
| Lights | Recessed, L.E.D. D.O.T. Stop, Tail, Turn & Clearance |
| Electric Plug | 7-Way RV Style |
| Wiring | Sealed, Modular Wiring Harness |
| Ramps | 4’ Slide-In Ramps (Side Pockets) |
| Cargo Control | (8) Tie Down Pockets Along Sides |
